Rebuilt for Dodge Dakota, Ram, 1500 and 2500
| Model |
Engine |
Years |
Tag |

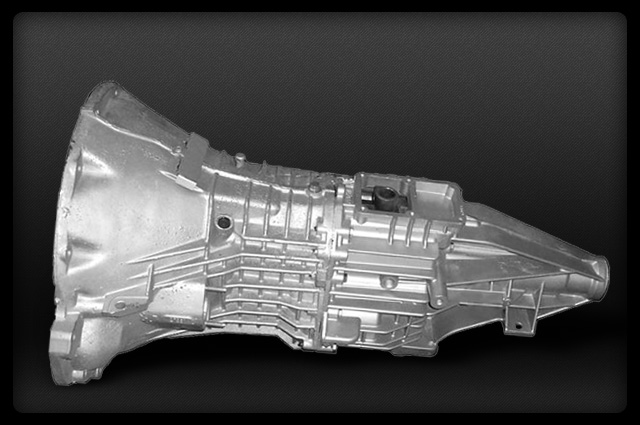

| Dakota 4X2 |
3.9L / 239 |
2000-2003 |
52108228AB
52108228AC
52108228AD |
| 4.7L / 287 |
2000-2003 |
52108228AB
52108228AC
52108228AD |
| 5.2L / 318 |
1994-1999 |
52108019
53006633
52107813
52107755 |
| Model |
Engine |
Years |
Tag |

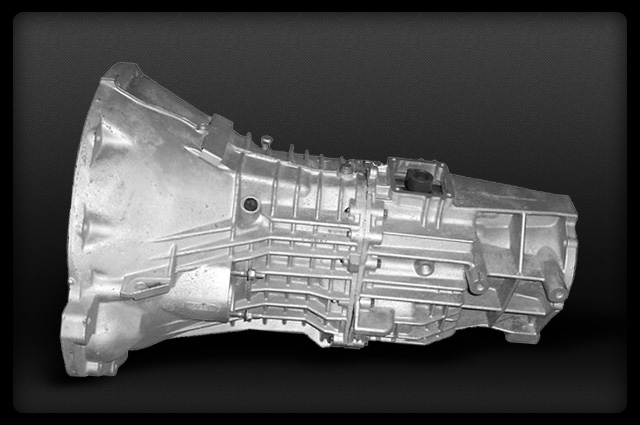

| Dakota 4X4 |
3.9L / 239 |
1994-2003 |
52108120
52108229AB
52108229AC
52108229AD |
| 4.7L / 287 |
2000-2003 |
52108229AB
52108229AC
52108229AD |
| 5.2L / 318 |
1996-1999 |
52108120
53006634
52107814 |
| Model |
Engine |
Years |
Tag |
Ram 1500 4X2
Ram 2500 4X2 |
All |
1994-2003 |
52108222
52108336
52108100AB
52108100AC
52107919AA |
| Model |
Engine |
Years |
Tag |
Ram 1500 4X4
Ram 2500 4X4 |
All |
1994-2003 |
52108223
52108337
52108101AB
52108101AC
52107920AA |
| Dodge NV3500 specs and current transmission Data |
| Original Manufacturer: |
New Venture Gear |
| Gears: |
Manual / 5 Speed |
| Drive: |
2WD and 4WD Available |
| Recommended Dodge NV3500 Oil / Fluid: |
5W30
(Any Name Brand) |
| Torque Rating: |
Manufacturer: 300 lb. ft.
Ours:300 + lb. ft. |
| Standard Duty Ordering Code: |
DDC |
| NV3500 Transmission Oil capacity: |
1 Gallon + |
| Weight: |
100 lb. Dry |
| Maximum GVW: |
7,200 lb. |
| NV3500 Build: |
Performance Built |
| Performance Inspected For: |
Leaks
Shifting Difficulties
Vibrations
Excessive Noise
Temperature and Performance |
| Dodge NV3500 Transmission Tag Numbers |
| Dodge NV3500 Transmission Gear Ratios: |
Wide Ratio MG5
4.02 - First
2.32 - Second
1.40 - Third
1.00 - Fourth
0.73 - Fifth
3.55 - Reverse |
Close Ratio M50
3.49 - First
2.16 - Second
1.40 - Third
1.00 - Fourth
0.73 - Fifth
3.55 - Reverse
|
| Hollander Interchange Numbers: |
400-02662
400-02660
400-02663
400-02661
400-03250
400-03248
400-03249
400-03251
400-04152
400-04153
400-04154
400-04155 |
Questions Answered About The Dodge NV4500 Transmission
Question
Do you sell the bell housing for a 95 Ram?
Answer
Unfortunately the NV3500 is designed with an attached bell housing. To separate the bell you would expose the inner parts and render the rest of the transmission unusable.
Marcus v****o
Virginia, MN
Question
What is the difference between a Getrag and NV3500 transmission?
Answer
The Getrag manual five speed transmission has four shift rails and the NV3500 transmission has a single shift rail. They are often mistaken for one another and look similar from the outside, however the internal components are also completely re-designed.
Jimmy *******
Bothwell, WA
Question
What is the difference between the MG5 and the M50 for the NV3500 transmission?
Answer
The NV3500 manual transmission has two gear ratios. The MG5 is the wide ration transmission and the M50 is the close ration. The MG5 wide ration is used in the Dodge Dakota and Ram 1500 pickup trucks. The M50 close ration is used in the Dodge Ram 2500 light duty trucks.
Arlan D*****
Lakeland, FL
